Powder coated steel structure, zinc-chromate sliding parts. Telescopic, height-adjustable, powder coated metal anatomic handrails. The knobs prevent the loosening and movement of the handrail when used by patients. Nonslip PVC covered closed steps in two different heights. The stairs can be set in a straight position as well as in a corner position.

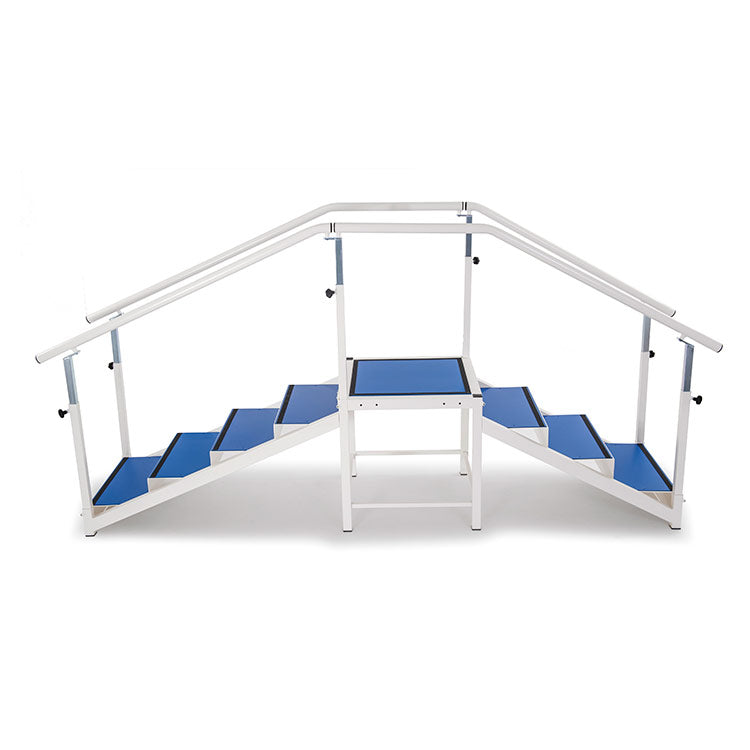

Designed for hospitals, physiotherapy clinics, and rehabilitation centers, this 2-flight staircase allows patients to practice ascending and descending stairs without the need to turn around on a platform. Each flight typically features different step heights (e.g., 13 cm and 16 cm) to provide progressive difficulty for orthopedic, neurological, and geriatric recovery.

Key Features

• Dual-Progressive Training: Features two separate flights of stairs. One side typically has a gradual rise (4 steps), while the other has a steeper rise (3 steps), allowing for graduated therapy protocols.
• Adjustable Handrails: Telescopic, powder-coated steel or stainless steel handrails that can be adjusted in height (typically 60 cm to 100 cm) to accommodate both pediatric and adult patients.
• Safety-First Design: * Non-Slip Surface: High-grip PVC or carpeted treads to prevent slipping.
• Secure Locking: Locking knobs on handrails to ensure zero movement during use.
• Closed Risers: Closed steps prevent feet from sliding through, increasing patient confidence and safety.

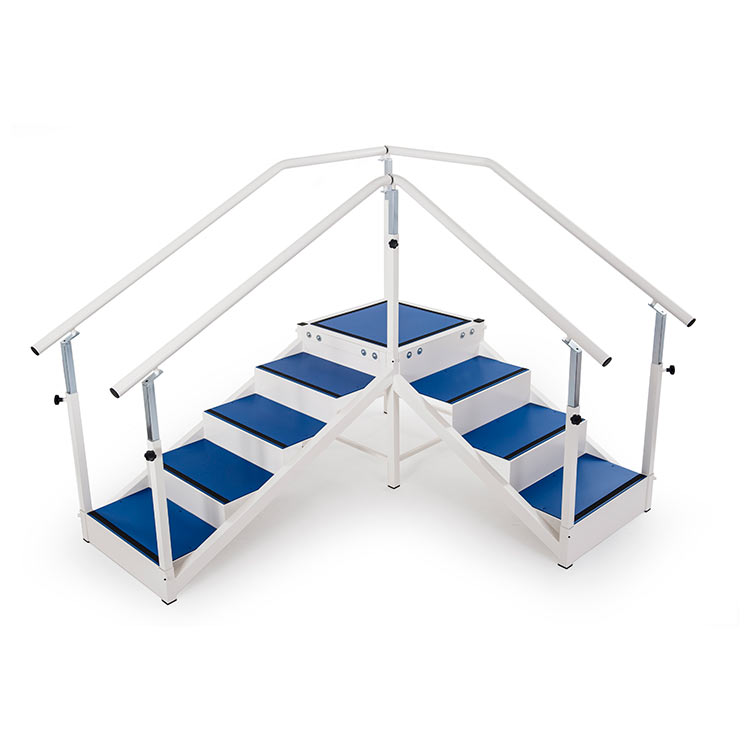

• Modular Configuration: Many models can be set up in a Straight Line (Linear) for long rooms or a Corner (90°) configuration to save space

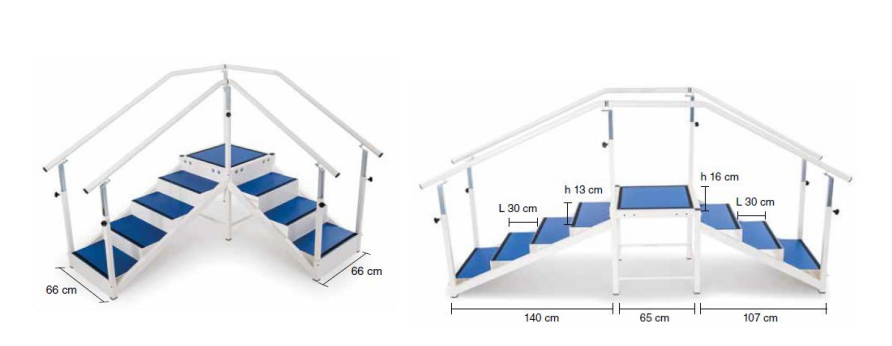

Specification

Material: Powder-coated steel frame / Hardwood plywood base

Step Width: 56 cm – 60 cm

Step Depth: 30 cm

Step Height: (Flight 1)~13 cm (4-step side)

Step Height: (Flight 2)~16 cm (3-step side)

Max Load Capacity: 135 kg – 180 kg (300 - 400 lbs)

Platform Size: 60 cm x 60 cm

Total Length: ~310 cm (Straight configuration)

Applications

• Post-Surgery: Recovery from hip or knee replacement.
• Stroke Rehab: Re-learning gait, balance, and coordination.
• Geriatric Care: Improving fall prevention and lower body strength.
• Pediatric Therapy: Safe environment for children to develop motor skills.
