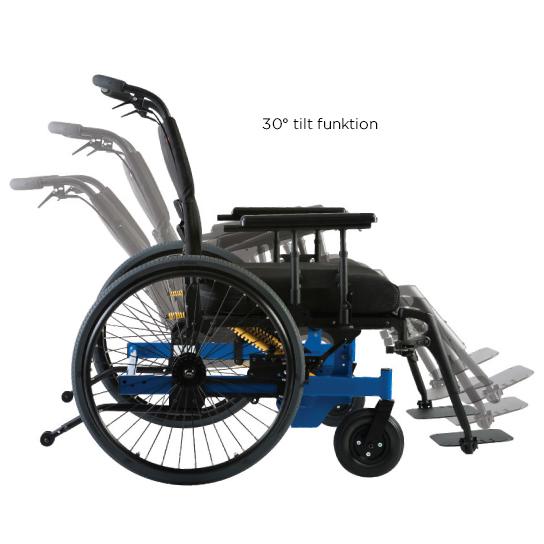

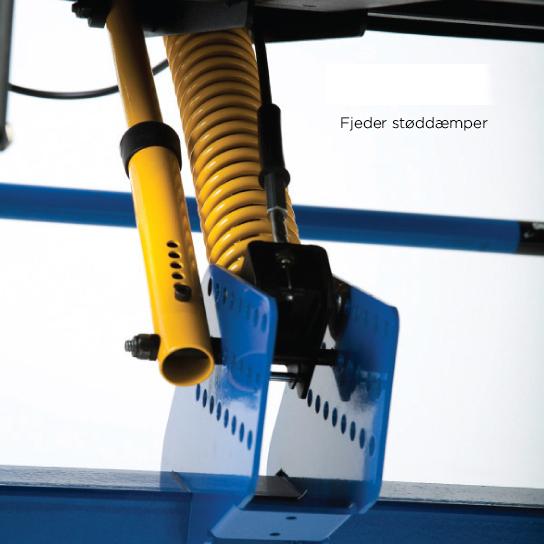

Bariatric Wheelchair Eclipse Tilt is designed to accommodate bariatric users up to 270 kg. The tilt-in-space function allows up to 30° tilt for optimal comfort and positioning for individuals needing more support. The tilt uplift force is adjustable allowing the chair to be easily tilted regardless of user weight.

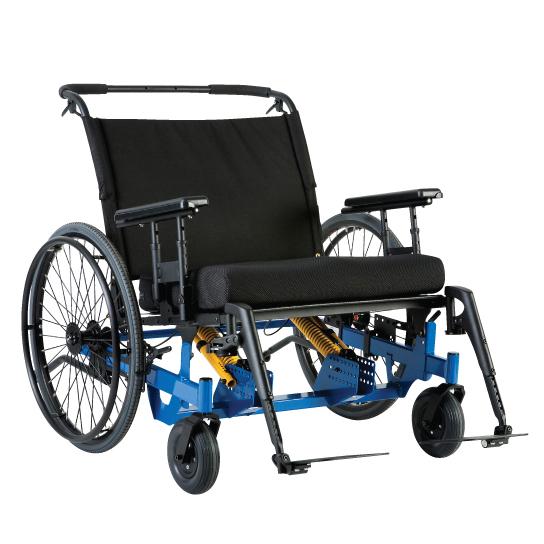

Bariatric Wheelchair Eclipse Tilt-in-space has a rigid frame that provides maximum strength, stiffness, and durability that will give the user years of use. It incorporates many of the features of a standard Tilt-in-Space but also provides the user the ability to self propel.

Construction

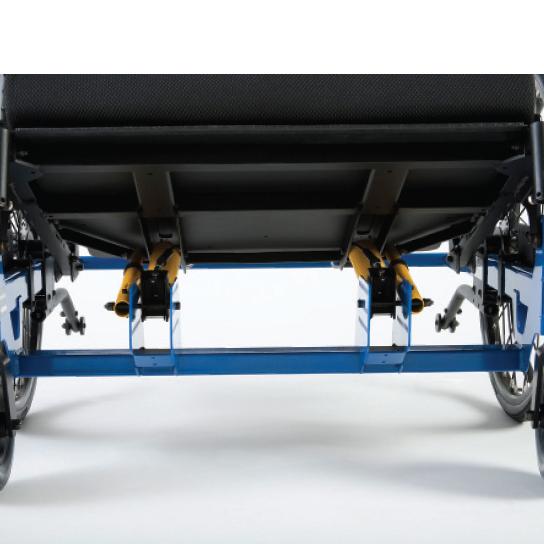

The frame is designed so most of the user weight is carried on the rear wheels. The wheels are especially made for this wheelchair. They are hard and solid making propulsion and steering easy and with very little loss of energy!

The seat pan is solid. Giving a bariatric user a solid seat pan facilitates a good posture and activeness in the chair.

Bariatric Wheelchair Eclipse Tilt has adjustable seat depth, seat height, seat to floor angle and seat to back angle. All of this makes it easy to adjust to any user. The back is constructed so users with a protruding behind can get good support to their lumbar spine, a huge problem rarely met by any other chair.

Front wheels are placed in front of the seat pan to ensure an anterior anti-tip, which is very important taking into consideration that most bariatric users have a lot of weight placed in front of them. The anterior anti-tip makes it possible for the user to get in and out of the wheelchair without the risk of tipping.

Different types of front rigging complete the adjustment possibilities. The chair can be used with different kinds of cushions.

Specialized in positioning solutions for bariatric users

Cobi Rehab has specialized in positioning solutions for bariatric users for all hours of the day with the purpose of providing independency, comfort and relief. Cobi Rehab’s focal point is respect for the individual. Innovation, proactivity, quality and empathy are our basic building block and valid in relation to everything we do.

Our positioning solutions are based on solid knowledge about use of the product and the effect of helping, with emphasis on dignity and a good working environment, both for the user and care giver. Our products are strongly engineered and functionally designed and have a weight capacity of up to 325 kg. Our product portfolio consists of wheelchairs, shower commodes, shower benches, patient/dinner chairs, wheeled walkers, walking frames, canes, as well as beds and mattresses.

Based in Denmark Cobi Rehab supply both to the private and public sector all over the world. Our goal is to provide professional advice and high quality products within a short time frame. Cobi Rehab’s staff members are highly experienced within occupational therapy. They all have hands-on experience with bariatric patients.

Ideal use for…

Bariatric users in hospitals, nursing homes, and private homes.

Specifications

Maximum weight capacity is    270 kg
Total width    Seat width + 25 cm
Total length without footrests    87 cm
Seat width    50 / 55 / 61 / 66 / 72 / 76 / 82 cm
Seat depth    41-56 cm
Seat height    41-51 cm
Backrest height    65-75 cm
Backrest angel adjustable    Yes
Armrest height adjustable    29-34 cm
Armrests removable    Yes
Footrests height adjustable    Yes
Footrests swing-away and removable    Yes
Weight    Approx. 32 kg
Operation    Manual
Flame-retardant cover    Yes
Color cover    Black
Color frame    Blue
Push handle    Yes
Quick release on rear wheels    Yes
Balance point adjustable    Yes
Fixed seat    Yes
Frame    Powder-lacquered steel
Rear wheels    24” solid PU tires
Casters    125 mm nylon with PU
Seat / backrest    Polyester / nylon
Armrests    Polyurethane
ISO – classification    ISO 12 22 03 - 08
Accessories    Varenummer
O2 Holder    0100-999-021
IV complete (IV holder, bracket for mounting and thumb screws)    0180-999-007
Headrest, adjustable    0120-999-103
Table (for seat width 55-72 cm)    0100-999-001
Armrest desklength 12”-16” right    0120-999-078
Armrest desklength left    0120-999-077
Footrest swing-away right    0121-999-008
Footrest swing-away left    0121-999-009
Footrest elevating right    0121-999-006
Footrest elevating left    0121-999-007

User Manual

https://www.cobirehab.com/wp-content/uploads/2023/10/2023-10-User-manaul-Eclipse-Tilt-Wheelchair.pdf
