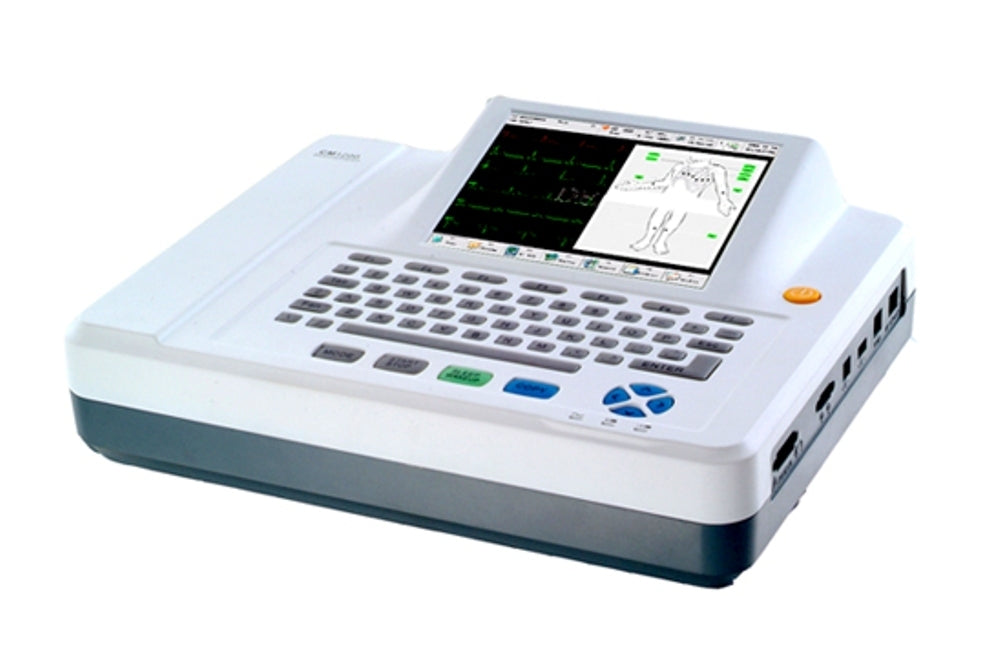

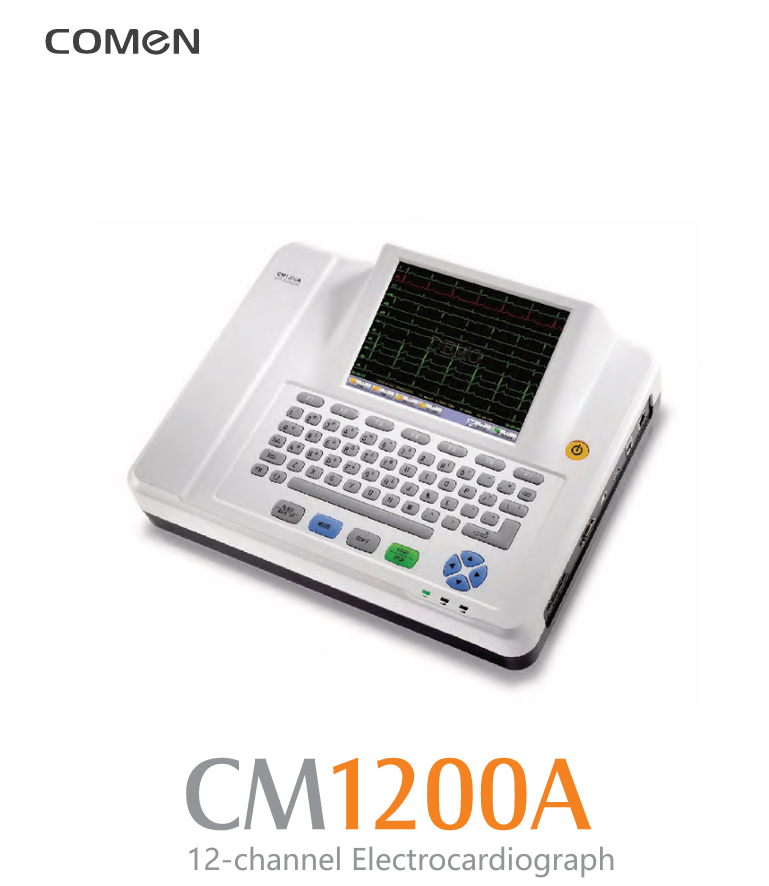

Advanced Diagnostic Precision for Comprehensive Cardiac Care. The Comen CM1200A is a high-performance 12-channel ECG system designed to provide clinicians with rapid, accurate cardiac assessments. Featuring a large 8.4-inch high-resolution color screen and a user-friendly interface, the CM1200A simplifies the process of capturing, analyzing, and storing electrocardiograms in busy clinical environments.

Equipped with the advanced Comen ECG Analysis Algorithm, this machine offers highly reliable auto-interpretation, making it an essential tool for hospitals, cardiology clinics, and emergency departments requiring precise diagnostic data.

Key Features & Clinical Advantages

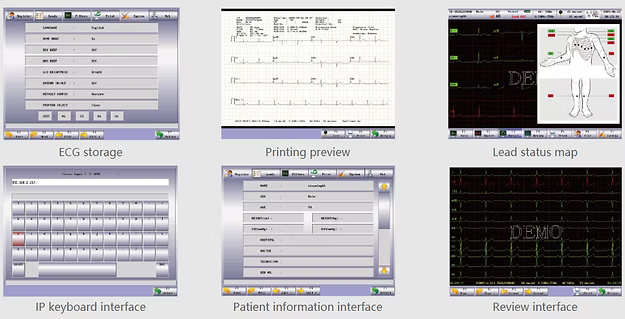

8.4-inch Color TFT Display: Large touch screen supports previewing all 12 leads simultaneously, ensuring trace quality before printing to save paper.

Advanced Interpretation: Integrated analysis software provides automatic measurements and diagnostic interpretations for adult and pediatric patients.

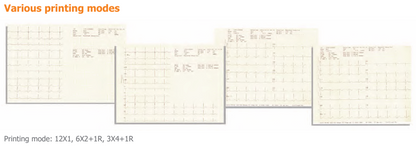

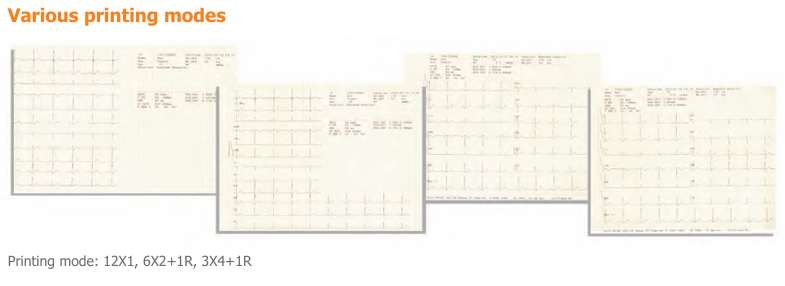

High-Speed Thermal Printing: Built-in A4-size compatible thermal printer with multiple print formats (12x1, 6x2, 6x2+1, 3x4, etc.).

Massive Data Storage: Internal memory stores up to 300 ECG records, easily expandable via USB flash drive for paperless data management.

Smart Signal Processing: Features digital filters for baseline drift, AC interference, and muscle tremor to ensure crystal-clear waveform output.

Full Connectivity: Includes USB, LAN, and RS232 ports for seamless integration with Hospital Information Systems (HIS) and EMR software.

Portable Reliability: Built-in rechargeable Lithium-ion battery supports over 2 hours of continuous operation, perfect for bedside rounds.

Specification:

Comen CM1200A 12

• Number Of Channels: 12 Channels
• Brand: Comen
• Model Name/Number: CM1200A 12
• Machine Type: Digital
• Digital Display: Yes
• Operating Mode: Automatic
• Battery Type: Lithium Ion Rechargeable
• Display Type: Digital
• Display Size: 8.4inch
• ECG Paper: 215 mm Roller or Z-fold ECG Paper
• ECG On Battery: 150 ECGs
• Battery Capacity: 2200mAh
• Storage: 300 ECG
• AC Input Voltage: 240 V
• Printer /Recorder: Inbuilt Thermal Printer

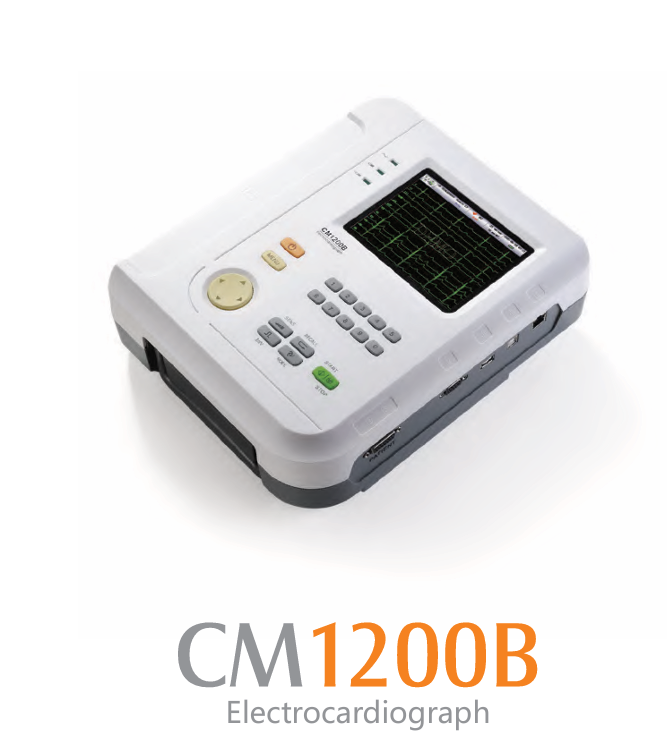

Comen CM1200B

• Display Size: 5.7-inch TFT Color Display
• User Interface: Physical Buttons + Keyboard
• Weight: Approx. 3.0 kg
• Ideal For: Private clinics & home visits
• Storage: 300 ECG records
• Portability: High (Compact/Portable)
