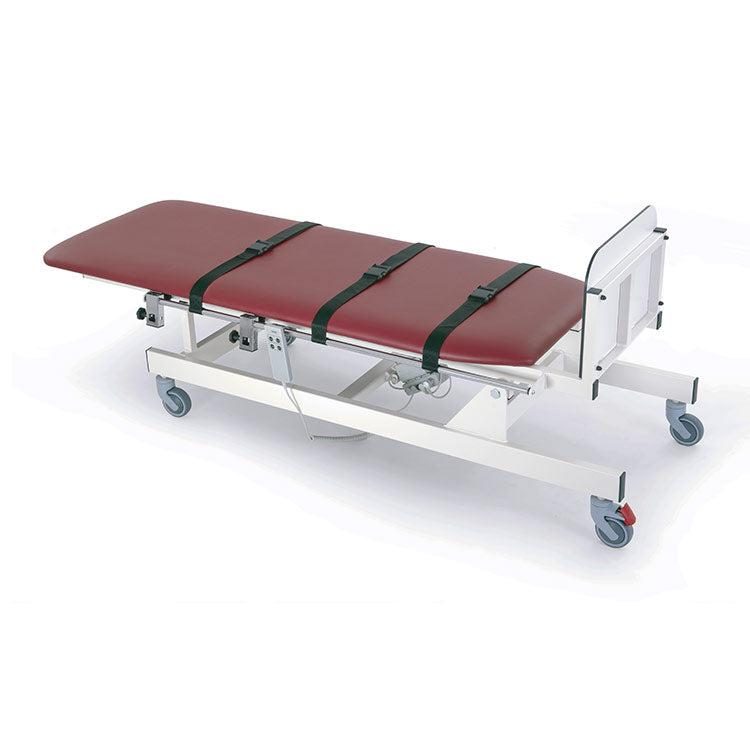

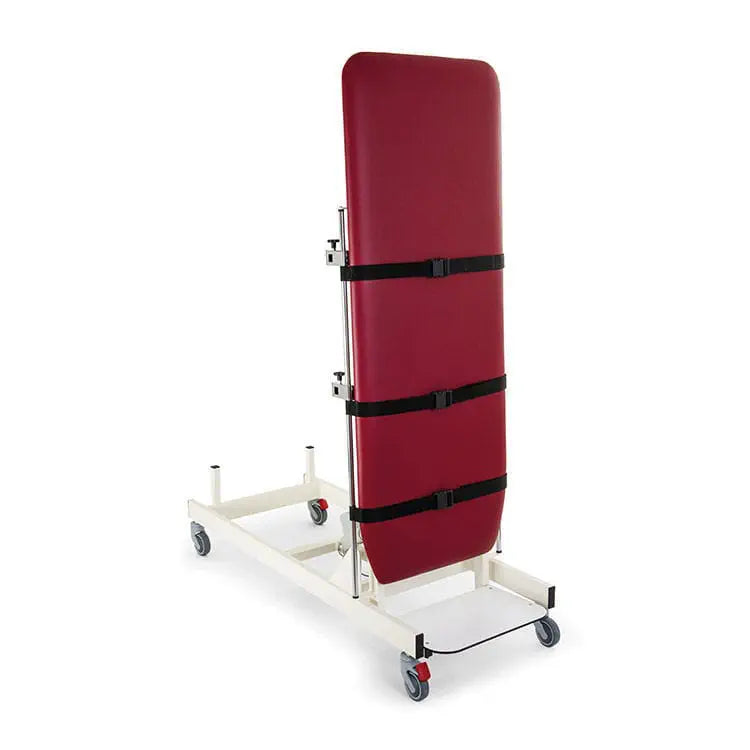

The NETTUNO table is designed for tilt training in supine position through a gradually increasing tilt angle. The tilt is carried out with a low voltage motor. The device is equipped with a padded surface, postural adjustment and accessories for patients’ support and comfort. Equipped with 4 swivel castors of which 2 locking.

Key Features

• Electric Tilt Adjustment: Smooth, low-voltage motor transition from 0° to +90° via a user-friendly hand control.
• Patient Safety: Equipped with three adjustable safety straps and a fixed footboard to secure the patient during verticalization.
• Mobility & Stability: Features four high-quality swivel castors (125 mm diameter), two of which include total-stop brakes for secure positioning.
• Hoist Compatible: The base frame is specifically designed with a 15 cm under-bed clearance to allow the use of patient hoists/lifts.
• Medical Grade Materials: Built with a powder-coated steel frame and fireproof upholstery for clinical environments.

Applications & Benefits

• Orthostatic Testing: Used for "Tilt Table Tests" to diagnose causes of fainting or dizziness.
• Rehabilitation: Essential for patients with spinal cord injuries, neurological disorders, or those prone to orthostatic hypotension.
• Physiological Health: Helps mitigate the negative effects of prolonged bed rest, such as bone density loss and circulatory issues.

Maintenance & Safety Notes

• Duty Cycle: The motor is designed for intermittent use (max 2 minutes on / 18 minutes off).
• Emergency Feature: Includes an emergency lever for manual actuator unlocking.
• Sanitization: The leatherette upholstery is easy to clean and resistant to medical-grade disinfectants.

Target Audience / Location

Rehabilitation Clinic Supplies, Hospital Furniture, Physiotherapy Center Gear, Long Term Care Equipment, Medical Practice Supplies, Outpatient Rehab Tools

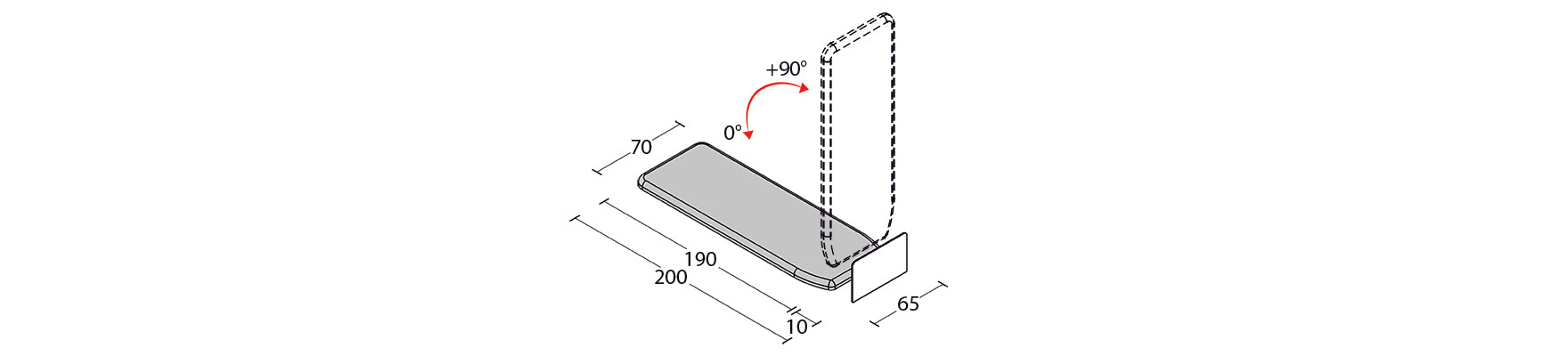

Features:

Sections 1
Angle – electrically adjustable : 0° -  90°
Under bed clearance : 15 cm
Width : 65 cm
Overall width (including the lateral bars) : 70 cm
Length : 190 cm
Fixed height : 50 cm
Max working load, evenly distributed : 150 kg
4 swivel castors, of which two locking : Ø 100 mm
Safety straps : 3
Foot board : Fixed
Power supply : 230 V 50/60 Hz 1,5A
Actuator thrust : 8000 N
IP Code : IP 66
Weight : 70 kg
